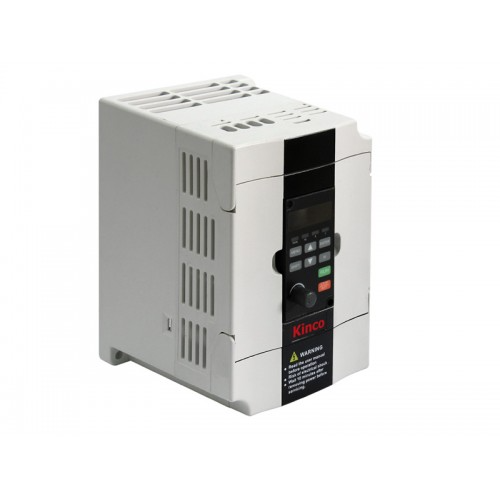

Biến tần 1 pha 110VAC 1.1kW Kinco CV100-1S-0011G
Input Voltage Range of 100-120V
Power up to 1.5 HP
Methods of Control: V/F control, Vector control
Overcurrent, overvoltage, undervoltage, overheat, overload and missing phase protection.
Modbus Protocol (RS485 baud rate up to 125000bps)
Sleep/wake up function

The Kinco CV100-1S-0011G Series combines power and performance into one compact package. With 120VAC Single-Phase input, this drive offers up to 200 Watts (0.25 HP) of power to drive your Three-Phase AC motor. This series offers unique control methods to achieve high torque and accuracy, and variable speed range. Other features for this drive includes flexible I/O terminals, overcurrent, overvoltage, undervoltage, and overheat protection, acceleration and deceleration times, and vector control.

The CV100-1S Series VFD’s are LTSOH (Limited to Stock on Hand)

Item	Input voltage	Power(kW)	Rated Current (A)	Installation Type	IP Rating	Cooling Method	Downloads	Price (USD)	Quantity Discounts	More
CV100-1S-0011G	Single-Phase, 100-120V	1.47	10	Wall Mount	IP20	Fan	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

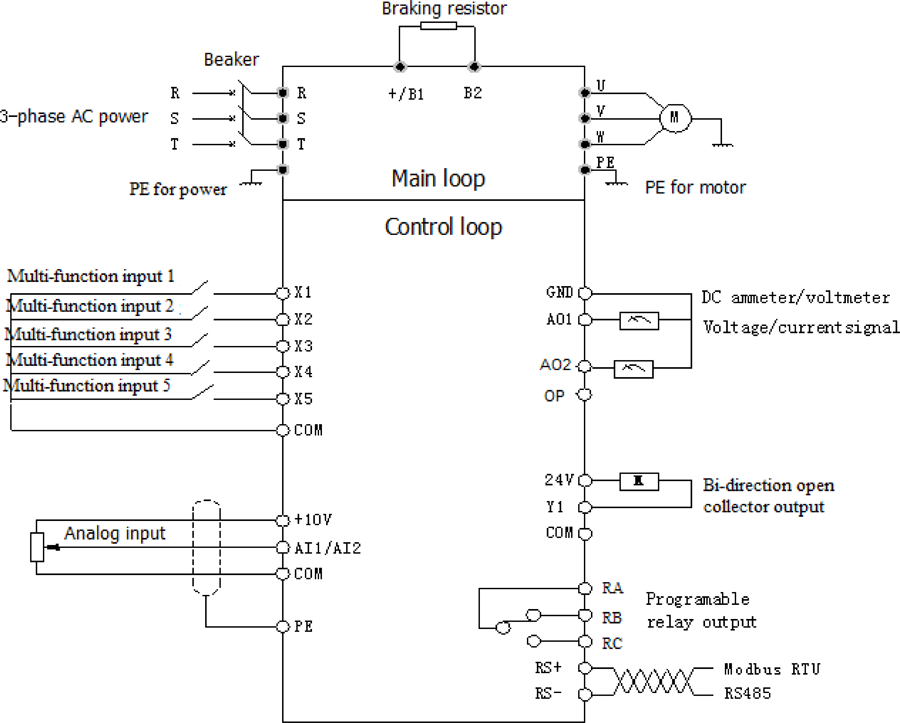

Wiring Diagram

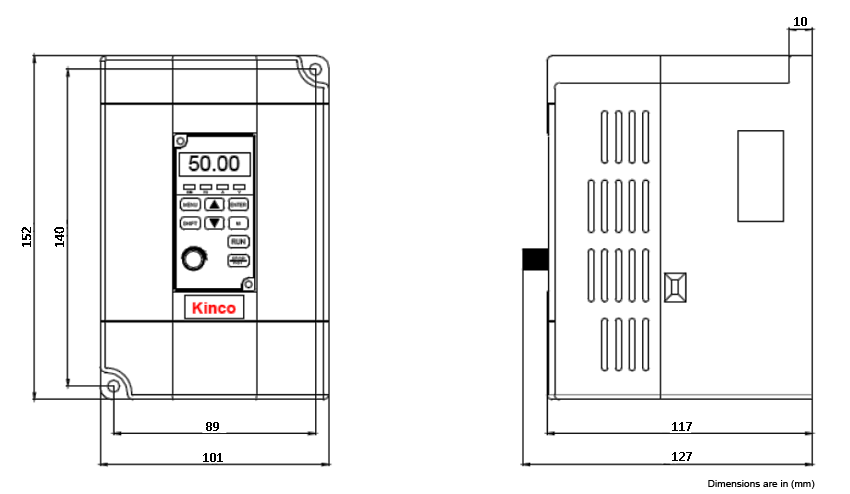

Dimensions
