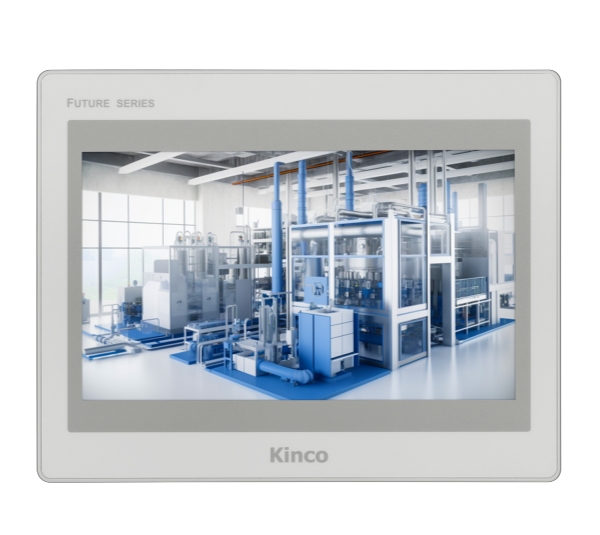

Màn hình cảm ứng HMI 10.1 inch Kinco F2100E2(UL) (2 COM, 1 USB Host, 2 Ethernet)
As Kinco Automation’s flagship industrial HMI lineup, the FUTURE Series II boasts rugged hardware architecture, intelligent remote operation and maintenance (O&M), alongside an intuitive user operating experience. It delivers end-to-end human-machine interaction solutions for lithium battery, photovoltaic (PV), consumer electronics, semiconductor and automotive manufacturing industries, boosting production efficiency, slashing operational expenses and enabling manufacturers to expand their global footprint.
Thông số kỹ thuật
| Performance specification | |
| Display size | 10.1″ TFT |
| Display area | 222.72mm(W)x125.28mm(H) |
| Resolution | 1024*600 pixel |
| Display color | 16.77M true color |
| Visual angle | 70/70/60/60(L/R/U/D) |
| Contrast ratio | 500:1 |
| Backlight | LED |
| Brightness | 350cd/m2 |
| Backlight life | More than 30000 hours |
| Touch Panel | 4 line precision resistance network (surface hardness 4H) |
| CPU | Quad-core ARM 1.8GHz |
| Storage | 8GB Flash Memory+1GB Memory |
| RTC | Built-in RTC + 512KB recipe |
| Extensible memory | 1 USB Host |
| Printer port | USB Host/ Serial port |
| Ethernet | LAN0:10/100/1000 Mbps; LAN1:10/100 Mbps |
| Program download | USB Slave/ U disk/ Ethernet |
| COM port | COM0:RS232/RS485/RS422;COM2:RS232 |
| Electrical specification | |
| Input power supply | DC10.8V~DC28V, Built-in isolation |
| Rated power | 7W @24V DC |
| Allowable loss of power | <3ms |
| Insulation resistance | Over 50MΩ@500V DC |
| Hi-pot test | 500V AC 1 minute |
| Structure specification | |
| PCB coating | Yes |
| Shell material | Engineering plastic |
| Dimensions(mm) | 271*213*38mm |
| Cutout size(mm) | 260*202mm |
| Weight | 1.1 Kg |
| Environment specification | |
| Operating temperature | 0～50℃ |
| Operating humidity | 10～90% non-condensing |
| Storage temperature | -20～60℃ |
| Storage humidity | 10～90% non-condensing |
| Shockproof test | 10~500Hz, 30m/s², X,Y,Z direction/hour |
| Cooling method | Natural air cooling |
| Certification | |
| Degree of protection | Conforming to IP65 requirements |
| CE certification | EN IEC61000-6-4:2019，EN IEC61000-6-2:2019 |
| UL certificate | UL compliant |
| Software | |
| Configuration software | Kinco DToolsPro |
